| PCI WATCHDOG TIME CARD |
Stand Alone Watchdog Application
| BACK |  |
NEXT |
Stand Alone Watchdog Application |
|||||||
|
|||||||
|
|||||||
| User can set watchdog to
monitor MODEM signals. In the previous mode, the watchdog is used to
monitor computer signals, however under this mode, it can be used to
monitor MODEM signals. Under this mode, the hardware configuration is

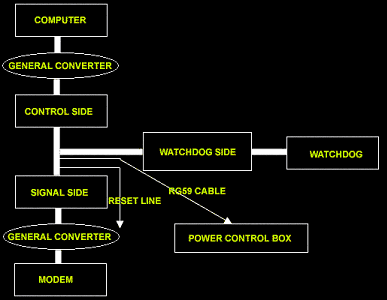

shown in the follow. Two general converters must be connected at both
control side and signal side. User can select communication mode to
reset computer or reset power control box, or select command check mode
to refresh timer from computer. |
|||||||
|
|||||||

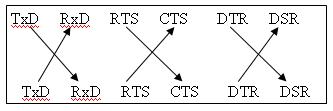

| The signal configuration
of general converter is: |
|||||||
|
|||||||
|
|||||||
|
|
|
|
|
|||
