PCCOM PCI BUS 4 PORT RS 232/422/485 WITH PHOTO ISOLATOR SERIAL CARD


last updated November 1, 2001

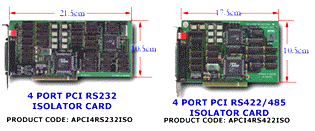

The PCCOM PCI bus 4 port with isolator adapter is an 32 bits PCI bus board with Plug and Play (PnP) features, it provides four asynchronous serial communication ports (RS232 or RS422/RS485), which link the computer and serial peripheral devices such as terminals, modems, serial printers, plotters, ... etc. The on board isolator can isolate voltage up to 2500V r.m.s..

The features of the PCCOM PCI bus 4 port adapter are:

*32 bit PCI bus with Plug and Play (PnP) features.

*Four RS232 ports or RS422/RS485 ports for asynchronous communications.

*Provides isolator function which can isolate voltage up to 2500V r.m.s..

*Suitable for SCO UNIX, Linux, MS/DOS, WINDOWS/NT/2000, WINDOWS/95/98/ME, MS/WINDOWS, OS/2 ... etc.

*Pentium hardware compatibles.

*Baud rate up to 115200 for normal speed mode and up to 460K for high speed mode.

*Provides 16550 port that contains 16 bytes FIFO for each port.

*Up to 4 boards be installed in one computer system.

*Software compatible with PCCOM98/2000.

*Operating temperature 0 to 60
